主要参数：耐压30V，电流6A，,VGS±12V/20V可选，SOT23-3/SOT23封装可选。
DESCRIPTION
The JXP3404MRG uses advanced trench
technology to provide excellent RDS(ON), low gate
charge and high density cell Design for ultra low
on-resistance. This device is suitable for use as
a load switch or in PWM applications.
GENERAL FEATURES
VDS =30V，ID =6.0A
RDS(ON)(Typ.)=27mΩ @VGS=4.5V
RDS(ON)(Typ.)=18mΩ @VGS=10V
High power and current handing capability
Lead free product is acquired
Surface mount package
APPLICATION
PWM applications
Load switch

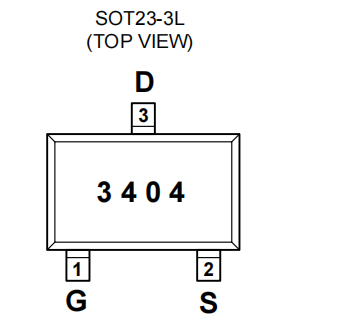

PACKAGE
SOT23-3L
